Esse Bakeheart

Esse Bakeheart

Product Measurements
& Technical Specifications

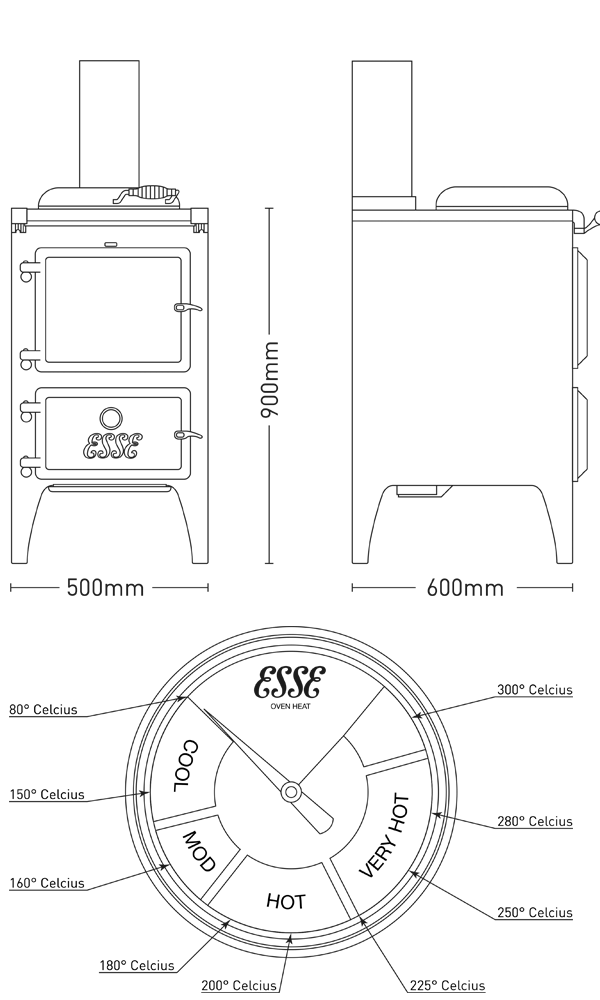

Bakeheart Dimensions line drawiing

Graduated hotplate temperature ranging
from 190°C – 300°C.

Hotplate temperature zones

Bakeheart Technical Manuals

Download PDF Instruction Manual

Specifications
Energy rating A
Ecodesign ready Yes
NET efficiency 77%
Seasonal efficiency 67.3%
Heat output 5kW
Weight 195kg
Flue pipe diameter 150mm (6inch)
Single air control Yes
Approved for use on decorative hearths Yes
Requires additional room vent No
Graduated hotplate temperature range 190-300°C
Direct air kit compatible Yes
Oven Capacity
Bottom 32ltr
Oven Dimensions
Width 350mm
Height 200mm
Depth 450mm
Clearance to combustibles
Sides 400mm
Rear 500mm
Bolster lid 416mm
Emissions
PM 23
OGC 54
Carbon monoxide 0.08%
Dust 23
Hydrocarbons 54
Nitrous oxides 82

Get A Quote

Delivery Nationwide. Installation is Available in Wicklow & Dublin.

Esse Bakeheart

Esse Bakeheart

The Esse Bakeheart is an elegantly proportioned wood-fired cooking stove that provides room-filling radiant heat, a graduated temperature cooking hob and a generous baking oven.

While its rugged cast-iron design and simple styling may give the impression that the Esse Bakeheart has been around for decades, this state-of-the-art piece of quality British engineering encapsulates everything we’ve learned in more than 160 years of manufacturing stoves and range cookers.

Using the same principles as our best-selling Ironheart, with a clear view of the dancing flames through the glass door to the firebox, the wood-fired Esse Bakeheart provides ample heat to keep a cottage kitchen warm and toasty.

While our standard range cookers are designed to contain heat, the Esse Bakeheart also incorporates convection panels that radiate warmth out into the room – just like a wood-burning stove.

ESSE’s unique heat transfer stove technology efficiently channels heat from the firebox into the 32-litre oven and hob.

The graduated temperature hob offers additional heat control, with the heat reducing from 300˚C in the centre down to 190˚C at the outside.

Designed to accommodate dry, seasoned logs of up to 400mm (15in) length the Esse Bakeheart can be installed pretty much anywhere to provide a reliable, ‘off-grid’ source of heat for extended periods.

  • Graduated temperature hotplate ranging from 190°C – 300°C
  • Off-grid heating and cooking – no mains services required
  • Generous 32-litre oven capacity
  • Simple air control
  • Powerful 5kW heat output
  • Suitable for use in smoke control areas
  • Efficiency rating of 77%, Energy Rated ‘A’
  • Ecodesign Ready
