Esse The Ironheart
Get a 3-Piece Flex Kit Free with Selected Models at Wicklow Fireplaces.
Limited Time Offer!

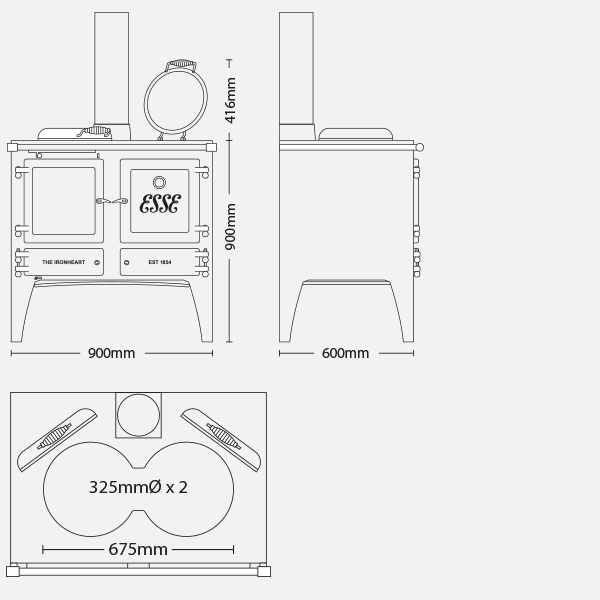

Product Measurements
& Technical Specifications
Ironheart Wood Fired Cook Stove Technical Manuals
| MODEL INFORMATION | |
|---|---|
| Energy rated | A |
| Graduated temperature hotplate | 130 – 360°C up to 6 pans |
| Flue pipe diameter | 6″ (150mm) |
| Suitable for continuous burning | Yes |
| Pre-heated secondary airwash | Yes |
| Approved for use on decorative hearths | Yes |
| Efficiency | 80.6% |
| Weight | 370kg |
| Oven Dimensions | |
| Width | 320mm |
| Height | 340mm |
| Depth | 440mm |
| Oven Capacity | |
| Top | 47.8 Litres |
| Operation | |
|---|---|
| Heat output to room | 7.3kW |
| Log burning firebox grate | Optional |
| Firebox is designed to burn | 500mm logs |
| Additional room vents required | 2.25” dia (57mmØ) |
| Clearances to combustibles | |
| Sides | 500mm |
| Rear | 400mm |
| Bolster lid | 416mm |
| Emissions | |
| Carbon monoxide | 0.07% |
| Dust | 21 |
| Hydrocarbons | 25 |
| Nitrous oxides | 90 |
Esse The Ironheart
Esse The Ironheart
Updated in line with the new EcoDesign requirements Esse The Ironheart is now EcoDesign Ready.
Originally launched in 2004 to celebrate 150 years of Esse The Ironheart is a stove and a range cooker in one, combining the best of our two main product ranges.
Enjoy watching the flames leap and flicker through the large clear glass window while it heats and cooks.
Esse The Ironheart has convection panels that radiate warmth like a wood-burning stove. The oven has an almost 50 litre capacity, and you can also cook directly in the firebox. With the “dog bone” hotplate comfortably able to take up to six pans, Esse The Ironheart is equipped to bring out the very best in creative cooks – so no wonder it’s become a firm favourite at Park Farm, River Cottage HQ.
- 47 Litre Oven
- Hotplate up to 6 pans
- Suitable for continuous operation
- Heat output to room up to 7.6kw
- Optional hostess shelf
